Hybrid Multi-Packer System
  • ●   The Hybrid Multi-Packer System combines the bene ts of the Stand-Pipe Multi-Packer System (SPMP) and the Multi-Packer System (MPS)
    ●   With stand-pipes in the upper section and lines in the lower section of the system
    ●   Each observation interval is accessible via an individual stand-pipe
    ●   Up to 10 independent observation intervals
    ●   Small, cost-effective tubing diameter in the lower section of the system
    ●   The depth of the transition between the line and the stand-pipe section can be customized
    ●   The design allows the system con - guration to be modi ed in the eld
    ●   Borehole diameters from 76 mm

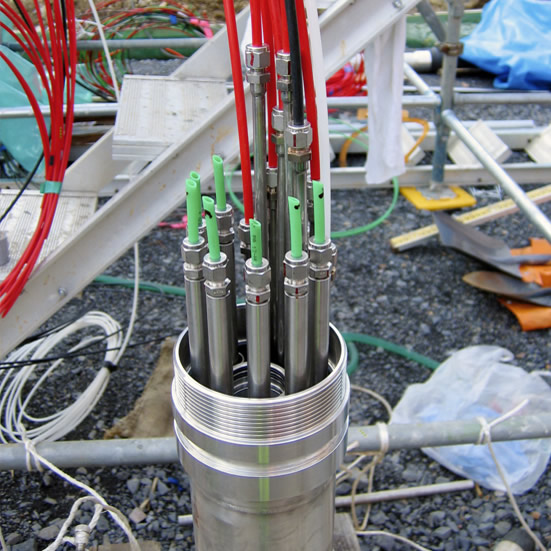

    ●   The Hybrid Multi-Packer System consists of tubing and packer modules. Up to 10 interval access lines in the lower section of the system are connected to 16.5 mm ID stainless-steel standpipes of the upper section. All module and stand- pipe connections are tted with double O-ring seals. The modules are fastened together with convenient swivel-nut couplings.
